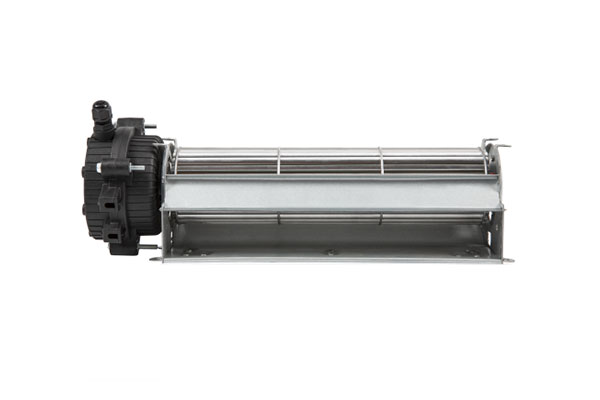

ECM cross-flow fan
Product introduction

1.Description

1.1ECM cross-flow fan is a new type of fan with high efficiency, reliability   and energy saving, which is characterized by the use of electronic energy   regulator (ECM) technology, which can realize functions such as multi-speed,   electronic damper and static pressure control, making it extremely adaptable in   a variety of application scenarios.

1.2The innovative design of the fan impeller of the ECM cross-flow fan can   greatly increase the efficiency of the fan and reduce the noise level. In   addition, thanks to its brushless motor technology, the fan is stable, has a   long service life and low maintenance costs。

1.3The main advantages of the ECM cross-flow fan include::

● High efficiency and energy saving: In the past, traditional fans often generated a lot of energy waste, but ECM cross-flow fans can make reasonable use of energy by adjusting the damper and static pressure control, which can significantly reduce energy consumption under the premise of ensuring normal operation.

● Silent operation: Fan noise is a problem that is often criticized by traditional fans, but the ECM cross-flow fan has low noise operation, making it more suitable for operation in commercial and residential buildings.

● Highly controllable: Thanks to its electronic energy regulator technology, the ECM cross-flow fan can be adjusted with multi-speed, electronic damper and static pressure control for optimal results.

In summary, the ECM cross-flow fan is an innovative, efficient, reliable and energy-saving fan with a wide range of functions and a wide range of applications, making it the best choice in buildings in various industries.


2.Technical specifications

Scroll Diameter(mm)

Motor

Voltage
     (V)

Speed
(RPM)

Ambient Temp

A(mm)

B(mm)

C(mm)

D(mm)

E(mm)

LB60*180

ECM08

AC110-230

1300-2500

-30-+50℃

53

180

255

192

153.5

LB60*240

ECM12

AC110-230

1300-2300

-30-+50℃

72

240

333

252

211.5

LB60*300

ECM12

AC110-230

1300-2300

-30-+50℃

72

300

394

312

211.5

LB60*360

ECM12

AC110-230

1300-2300

-30-+50℃

72

360

455

372

331.5

LB60*420

ECM12

AC110-230

1300-2300

-30-+50℃

72

420

516

432

391.5


3.Input Power

Motor

Speed(RPM)

Input Power(W)

60*180(mm)

60*240(mm)

60*300(mm)

60*360(mm)

60*420(mm)

ECM08

1300

2.3

3.1

4.2

6.5

/

ECM12

1.5

2.8

3.5

5.9

12.5

ECM08

1550

3.8

5

6.1

12.5

/

ECM12

3.3

4.6

5.7

10.1

15.4

ECM08

1800

4.8

6.7

9.1

/

/

ECM12

4.2

5.9

8

12.5

18.5

ECM08

2300

8

/

/

/

/

ECM12

7.5

10.5

14.1

18.5

22


4.RPM(FLOW-2300)

Motor

Speed(RPM)

Input Power(W)

60*180(mm)

60*240(mm)

60*300(mm)

60*360(mm)

60*420(mm)

ECM08

2300

8

/

/

/

/

ECM12

7.5

10.5

14.1

18.5

22

FLOW(m3/h)0Pa

145

230

290

330

390

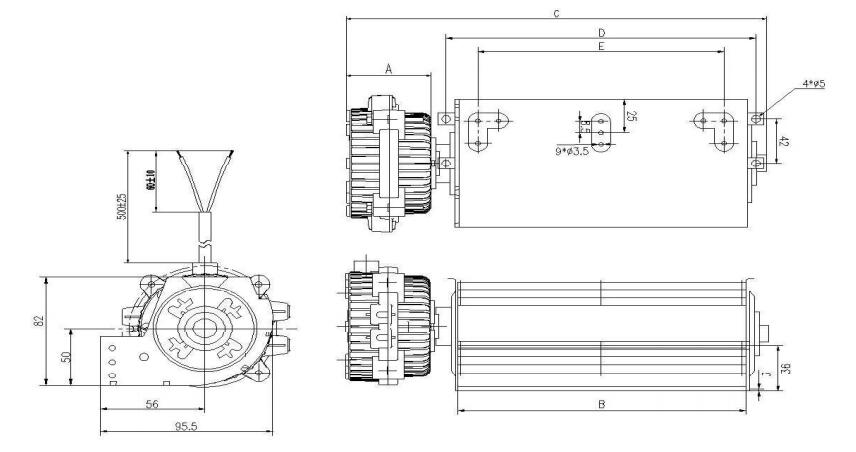

5.Dimension
