ECB250
Product introduction
Description:
Motor technology： | EC |
Impeller: | Aluminium |
Rotor: | Steel |
Type of protection: | IP44 |
Insulation class： | F |
Mounting position: | Any |
Temperature: | 0-10V/PWM/RS-485 |
Tach output | |
Protection: | Over voltage/Lock Rotor |
Motor Parameters:
MODEL | VOLTAGE V | INPUT POWER W | FREQUENCY HZ | SPEED RPM | MAX CURRENT A | AIRFLOW M3/H |
ECB250 | 230 | 160 | 50/60 | 2780 | 1.2 | 1540 |
ECB250 | 230 | 250 | 50/60 | 3250 | 2.0 | 1790 |

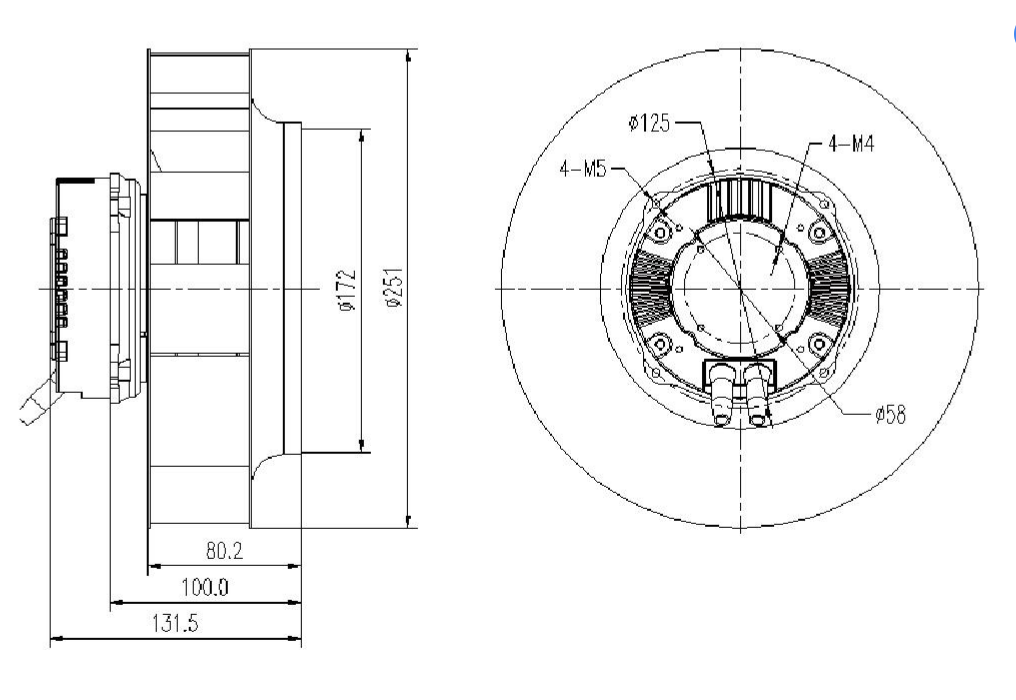

Dimensions ：

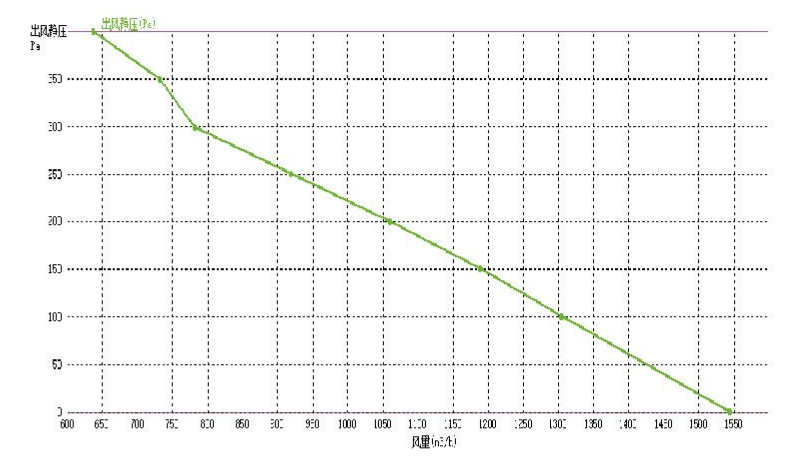

Airflow :
